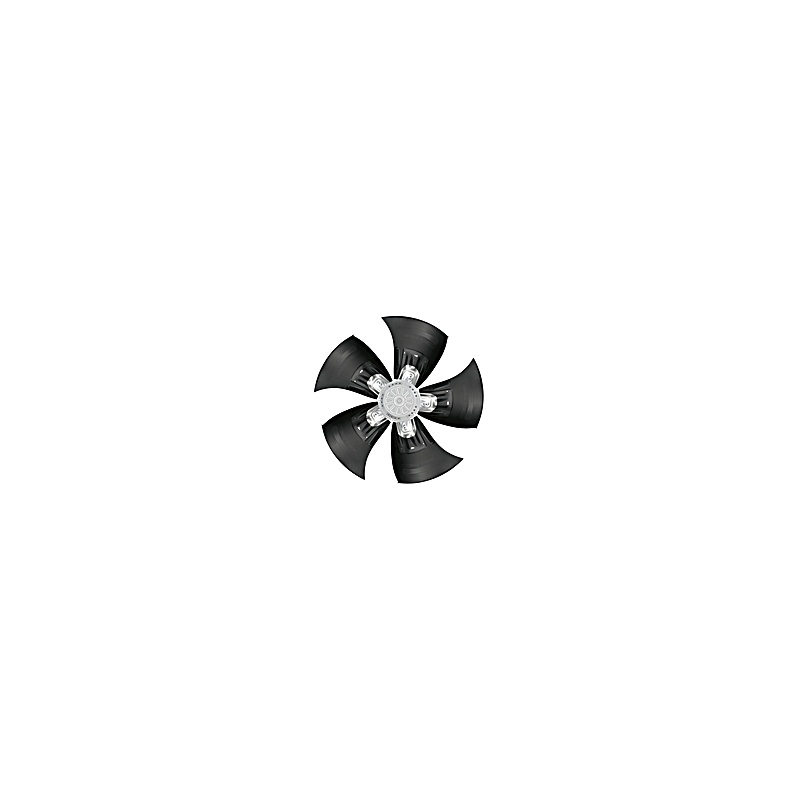

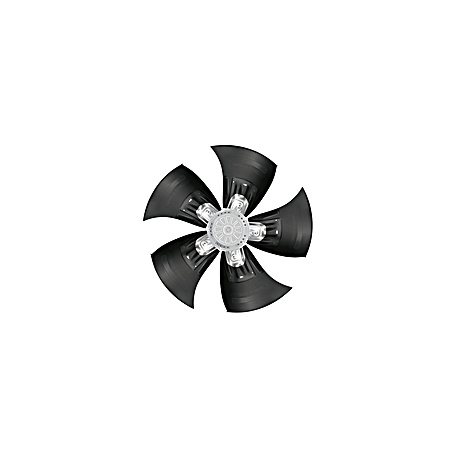

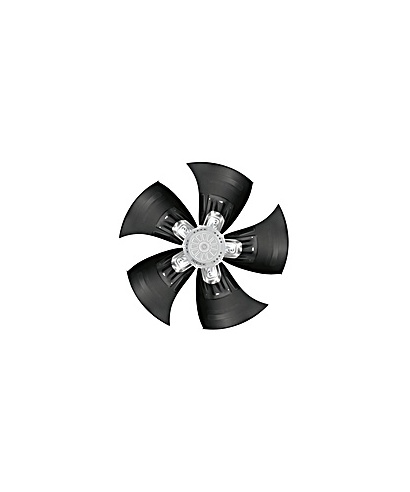

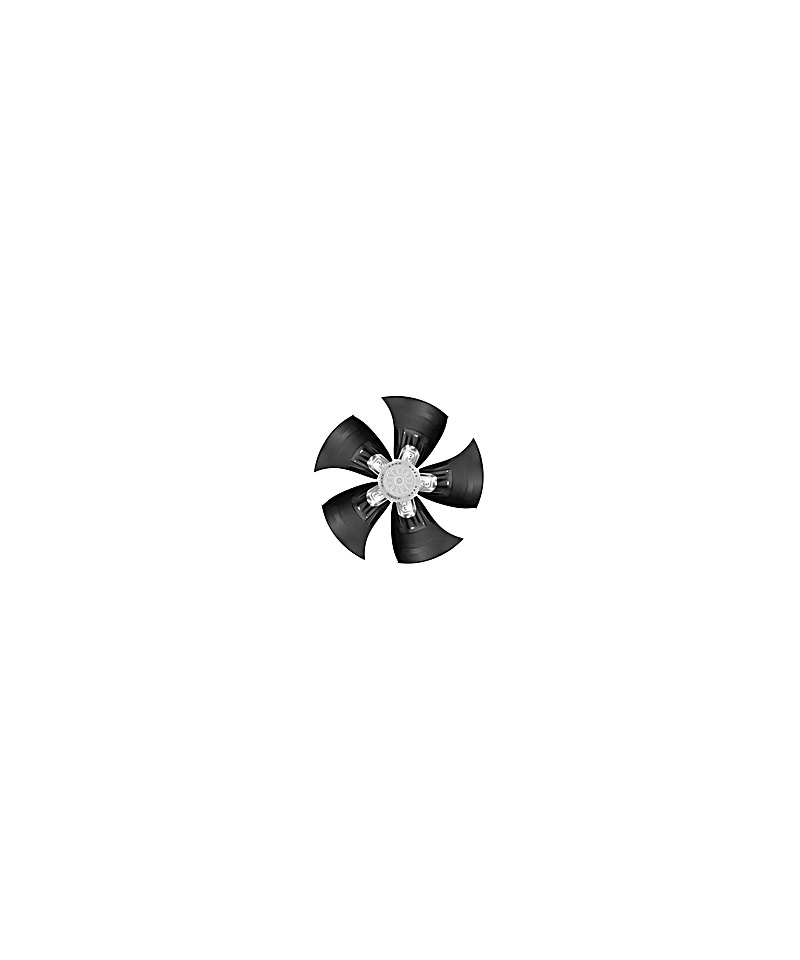

VENTILADOR AXIAL A4D560-AR03-03 EBM 400V-3P- 50HZ ASPIRANTE.DIAMETRO 560MM
102000149
Producto nuevo
VENTILADOR AXIAL A4D560-AR03-03 EBM 400V-3P- 50HZ
Más información
Technical description:
Mass: 12.1kg
Size: 560 mm
Surface of rotor: Coated in black
Material of housing: Die-cast aluminium
Material of impeller: Press-fitted sheet steel blank, sprayed with PP plastic
Type of protection: IP 54
Insulation class: "B"
Max. temperature: + 80 °C
Min. temperature: - 40 °C
Motor bearing: Ball bearing
Nominal data
Phase: 3~
Type of voltage: AC
Nominal voltage in V: 400
Frequency in Hz: 50
Type of data definition: maximum load
Air flow m3/h: 6755
Speed rpm: 1390
Power input in W: 880
Current draw in A: 2.15
Max. back pressure in Pa: 170
Min. ambient temperature in°C: -40
Max. ambient temperature in°C: 65
Mass: 12.1kg
Size: 560 mm
Surface of rotor: Coated in black
Material of housing: Die-cast aluminium
Material of impeller: Press-fitted sheet steel blank, sprayed with PP plastic
Type of protection: IP 54
Insulation class: "B"
Max. temperature: + 80 °C
Min. temperature: - 40 °C
Motor bearing: Ball bearing
Nominal data
Phase: 3~
Type of voltage: AC
Nominal voltage in V: 400
Frequency in Hz: 50
Type of data definition: maximum load
Air flow m3/h: 6755
Speed rpm: 1390
Power input in W: 880
Current draw in A: 2.15
Max. back pressure in Pa: 170
Min. ambient temperature in°C: -40
Max. ambient temperature in°C: 65
